Identifying the Universal Joint (Uni Joint)

The universal joint is important for the performance of the overall driveshaft. Below is a universal joint identifier guide that you can follow.

  1. The first step in identifying the Uni Joint is to measure the outside diameter of the Uni Joint cap.   If the Uni Joint is a mechanics type, you measure between the centers of the wholes in the cap.Bearing-cap-types
  2. The next step in identifying the Uni Joint is to measure from circlip to circlip.  If the Uni Joint is a mechanics type, you measure between the centres of the holes in the cap.

Uni-joint-types-one

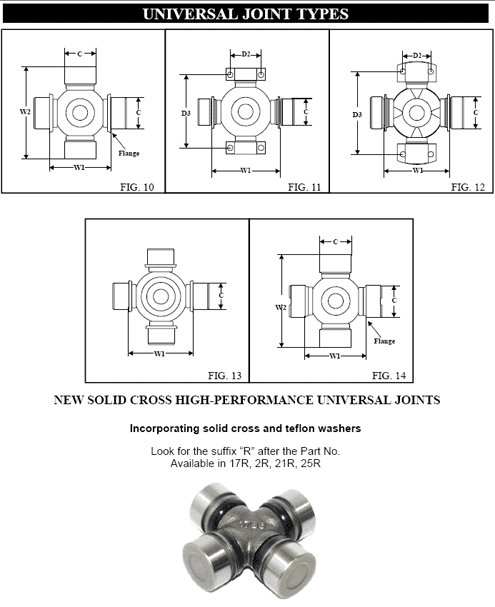

Uni-joint-types-two

If you’re having any issues identifying the Universal Joint please contact Driveshafts Australia, we can assist you with a range of related services, including driveshaft repairs and balancing.
